Tekton Web Development

Tekton Web requested our services to convert binary dumps into seamless financial reporting data.

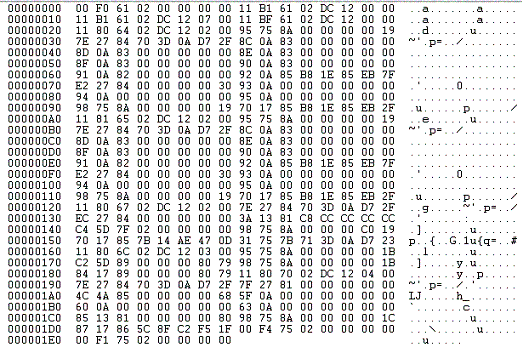

Tekton's clients had outdated equipment which produced transaction data as daily binary file dumps.



After an examination of the binary data, we asked the customer to help us reverse engineer the binary by generating simple transactions. With this data, we were able to recognize floats, integers and hexadecimal transaction types.

The final challenge was to understand the bit mapping of 6 byte float values.

After researching several sites the internet, we discovered that the 6 byte real used in Delphi version 3 and older and Borland's Object Pascal. The author of the following web page finalized our missing calculation for float conversion with the following calculation:

http://www.merlyn.demon.co.uk/programs/floatval.pas

function SixToAns(const Six : real{48}) : Tanswer ;
const Q6 : extended = 1.0/256.0 ;
type A6 = array [1..6] of byte ;
var S : extended ; A : A6 absolute Six ;
begin
if A[1]=0 then begin SixToAns := 0.0 ; EXIT end ;
S := 1.0 + 2.0 * ((((A[2]*Q6+A[3])*Q6+A[4])*Q6+A[5])*Q6+(A[6] and $7F))*Q6 ;
if A[6]>127 then S := -S ;
SixToAns := S * TwoTo(integer(A[1])-129) end {SixToAns} ;

The final output was generated as normalized database records, which can be stored in any common relational database.
